Level sensing that never touches the media.
The TLV Sensor reads liquid level with optical time-of-flight: no probes, no floats, no fouling. It wires into the control system you already use and ships from our shop in Albany, Oregon.

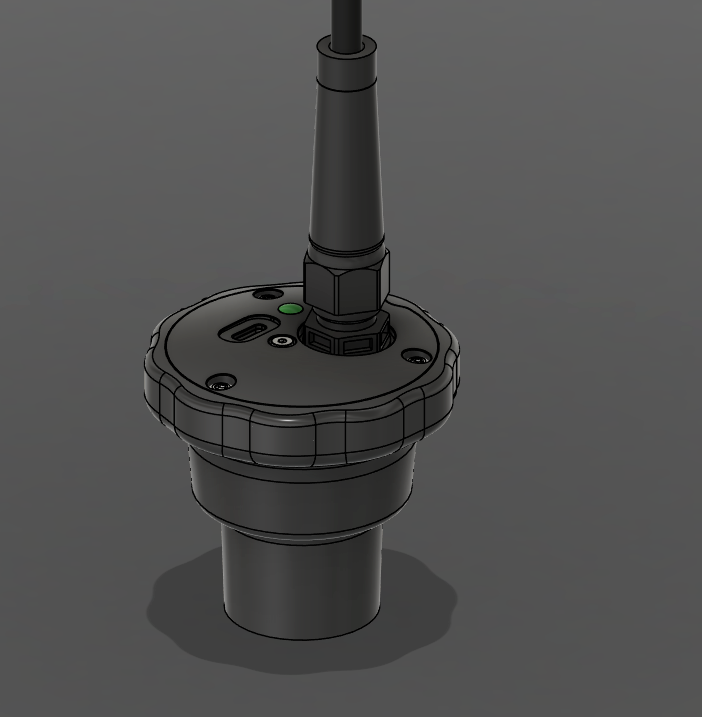

TLV Sensor: Tank Level Vision
Point it at the surface, connect the current or voltage analog output to your controller, and read level with your existing system. The TLV measures using optical time-of-flight from above the liquid, so there's no probe or float sitting in the media to corrode or wear out.
Key Specifications
- 0.02 m to 4 m measuring range
- ±15 mm typical accuracy, 1 mm resolution, 10 Hz update rate
- 4-20mA, 0-20mA, 0-5V, or 0-10V analog output
- 18-36 V DC supply voltage (24 V nominal)
- Industrial enclosure designed for the factory floor
- Free Windows configuration software
Two-year warranty. If a sensor fails in service, we ship a replacement, and our engineers answer the support line.
Engineered to replace your legacy hardware.
- Drop-In Integration
- Standard 4-20mA, 0-20mA, 0-5V, and 0-10V analog outputs that your control system already speaks.
- Built to Hold Up
- Industrial-grade enclosures and conservative electronics, designed for washdowns, vibration, and dust rather than the lab bench.
- Supported for the Long Run
- Two-year warranty, firmware updates, and a support line answered by the people who actually built the thing.
Designed, built, and tested under one roof.
Housing, electronics, firmware, software: all of it comes out of our shop in Albany, Oregon. Every sensor is assembled and tested by the team that designed it, which is why we can stand behind a two-year warranty and answer support questions without a script.
Ready to measure without touching?
Order online, or send us a PO for bulk pricing. A member of our team gets back to you within one business day.
